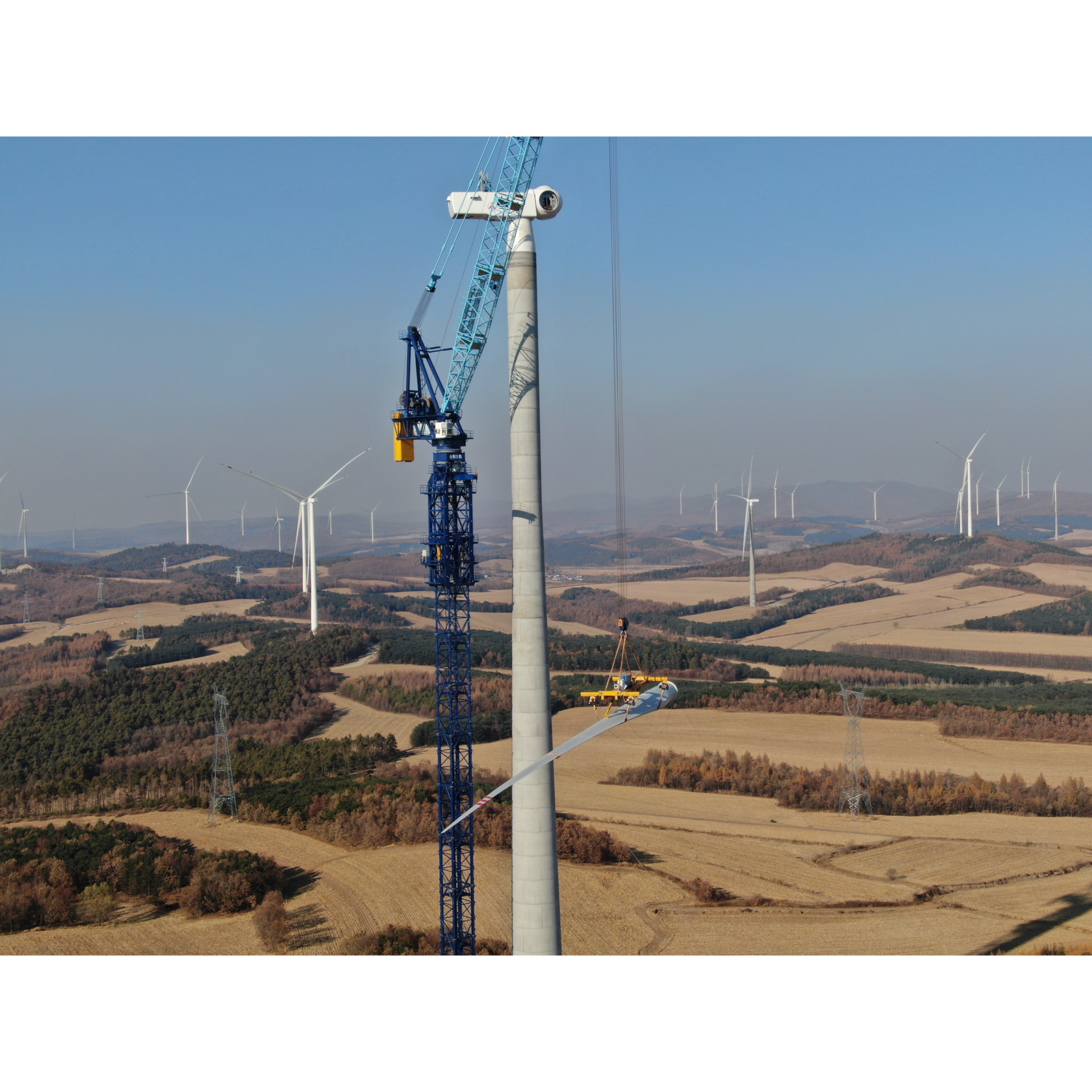

JLD3300 Wind Turbine Tower Crane



  • Max. Lifting Capacity:240t
  • Max. Lifting Height:200m

JLD3300/240t can meet the lifting requirements of the hub height under 185m.

FREE QUOTE NOW [email protected]
Download PDF
    Free Quote

    Description

    JLD type wind turbine tower crane has excellent economic and adaptability advantages in plain high tower wind power and mountain wind power hoisting by virtue of the advantages of high lifting height, large lifting capacity, strong wind resistance, low base requirements, small assembly site, fast transfer speed and high safety and stability.

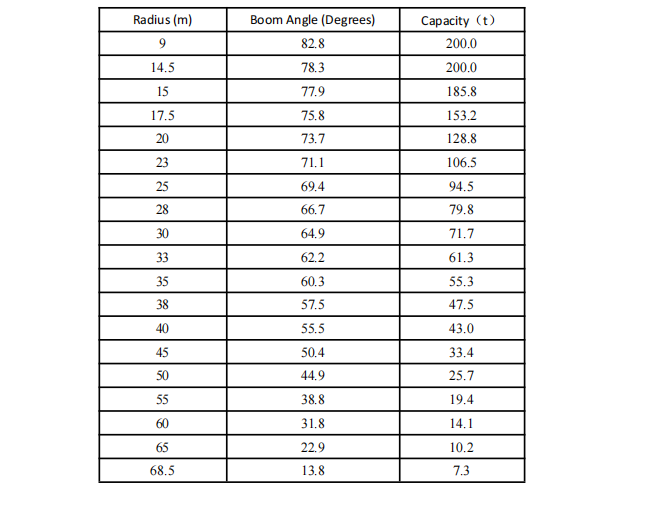

    JLD3300 Wind Turbine Tower Crane

    • Model: JLD3300
    • Max. lifting capacity:240t
    • Max. lifting height:200m
    • Working speed:20m/s Non-working speed:35.8m/s）
    • Size of foundation:18m × 18 m
    • Ground pressure requirement:200Kpa
    • Working Temperature: -20~+40℃

    Features

    Wind turbine tower crane with rotating arm
    Flat-Top Tower Crane stable foundation for lifting heavy loads
    Flat-Top Tower Crane stable foundation for lifting heavy loads

    1

    Platform Area: 30m×40m

    2

    Strong Wind Resistance:working state of 20m/s,non-working state of 35m/s

    3

    Temporary Land for Jib Assembling:0

    4

    Lifting Height:198m

    5

    Foundation Capacity Requirements:200Kpa

    6

    Disassembling Time:36hr

    Advantages

    1

    Economical Efficiency
    1.1 Engineering economy: Normally 50m×40m platform, 30m×40m in extreme condition also fine small occupation area, saving civil construction cost; Suitable for challenging terrain.
    1.2 Transportation economy: 25 trailers are needed;Most components transportation size is controlled by 3.75m × 3.75m Auxiliary crane for installation:250ton Crawler crane ,350 ton All Terrain Mobile Crane

    2

    Safety
    2.1 Strong wind resistance, high safety
    2.2 Safety & Low Pad Requirement Base distance 18m×18m Strong anti-overturning ability, the pad requirements is 175kPa

    3

    Transition Efficiency
    3.1. Double TC Base Frame
    3.2. Around 36 hours transition between the Crane Pad
    3.3. Modular design, convenient disassembly and assembly

    Applications

    It's economy and safety are especially obvious in the lifting of wind turbine units above 140m
