JLD1700 Wind Turbine Tower Crane

Max. Hoisting Capacity:136t
Max. Boom Length:68.5m

JLD2250S/200t can meet the lifting requirements of the hub height under 185m.

FREE QUOTE NOW [email protected]

Description

JLD type wind turbine tower crane has excellent economic and adaptability advantages in plain high tower wind power and mountain wind power hoisting by virtue of the advantages of high lifting height, large lifting capacity, strong wind resistance, low base requirements, small assembly site, fast transfer speed and high safety and stability.

JLD1700 Wind Turbine Tower Crane

Model:JLD1700/136t

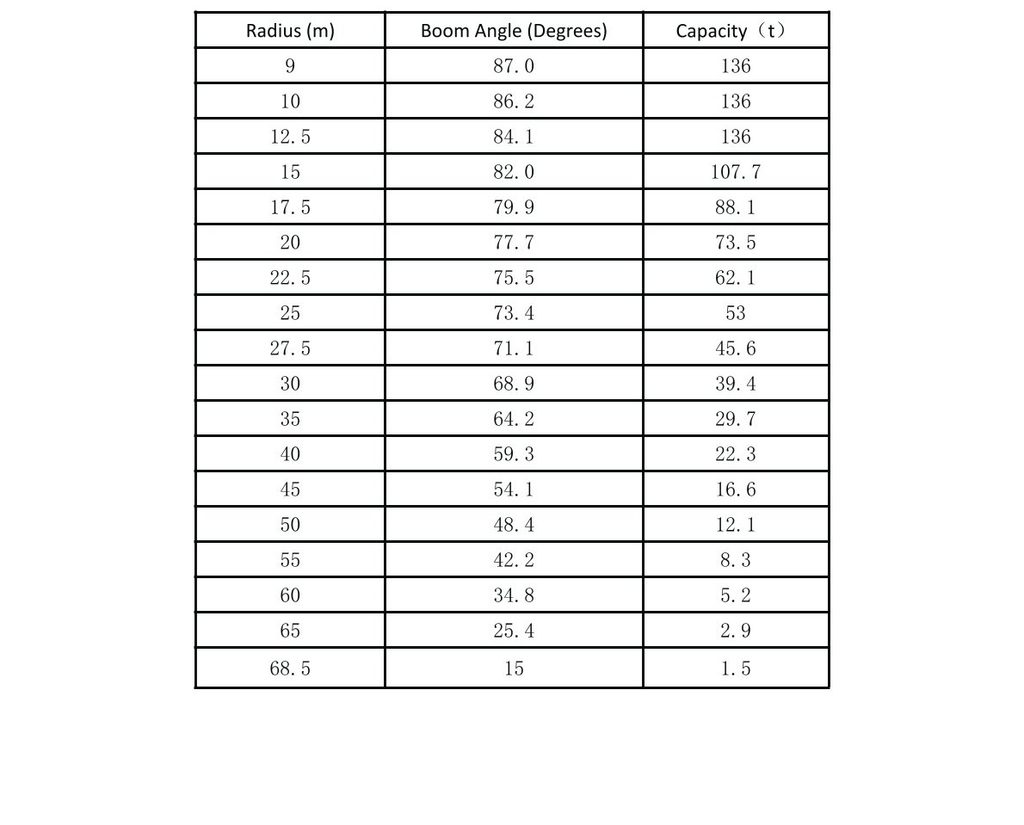

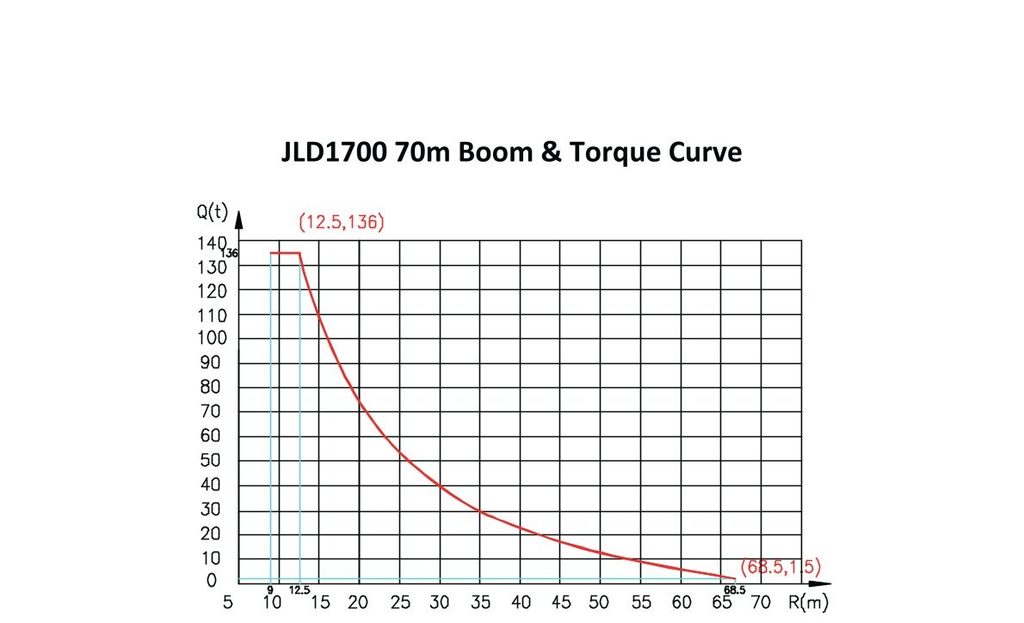

Max. hoisting capacity:136t
Max. hoisting capacity at jib end：1.5t

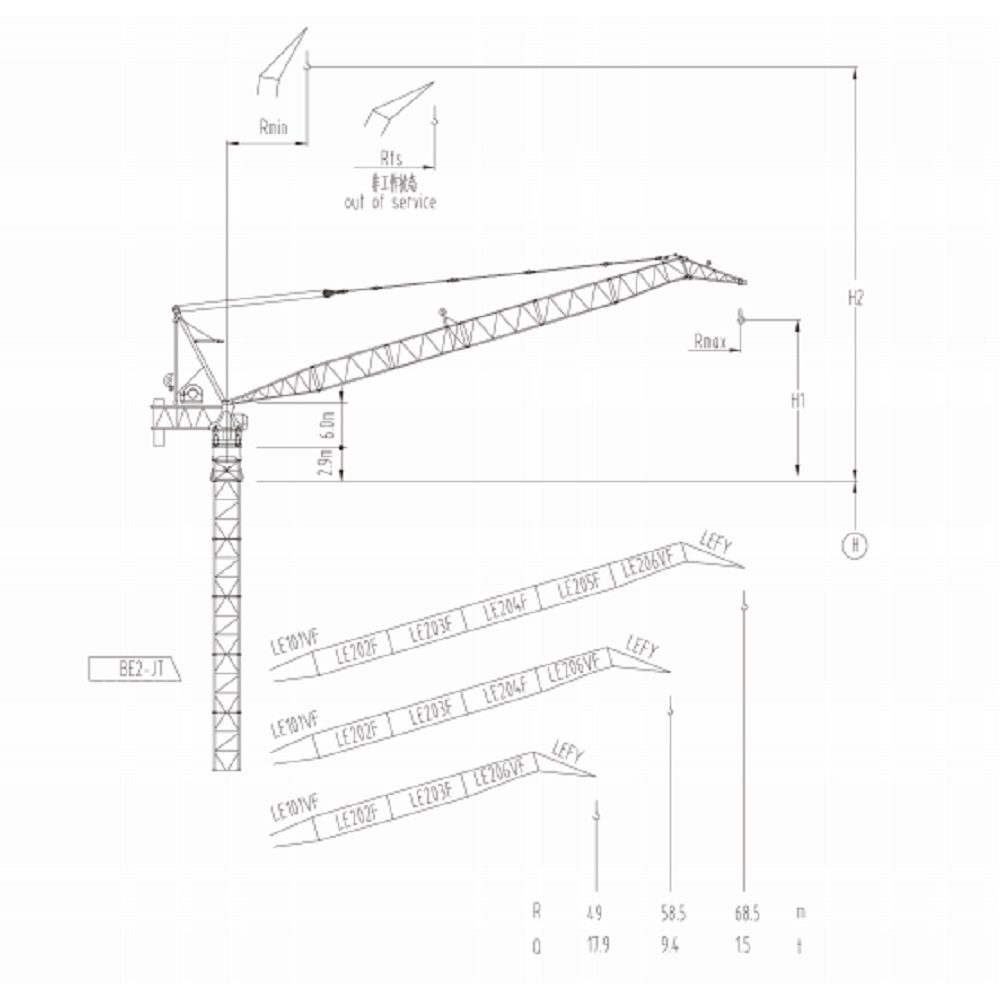

Max. boom length：68.5m
Max. free standing height：162.5m
Working Statue Wind Speed:20m/s
Size of foundation:16m × 16 m
Ground pressure requirement:175Kpa
Wind speed (instantaneous):20m/s （working status）35.8m/s（non-working state）
Working Temperature: -20~+40℃

Features

Wind turbine tower crane with rotating arm

Flat-Top Tower Crane stable foundation for lifting heavy loads

Platform Area: 30m×40m

Strong Wind Resistance:20m/s

Temporary Land for Jib Assembling:0

Lifting Height:198m

Foundation Capacity Requirements:175Kpa

Disassembling Time:36hr

Advantages

Economical Efficiency

1.1 Engineering economy: Normally 50m×40m platform, 30m×40m in extreme condition also fine small occupation area, saving civil construction cost; Suitable for challenging terrain.
1.2 Transportation economy: 25 trailers are needed;Most components transportation size is controlled by 3.75m × 3.75m Auxiliary crane for installation:250ton Crawler crane ,350 ton All Terrain Mobile Crane

Safety

2.1 Strong wind resistance, high safety
2.2 Safety & Low Pad Requirement Base distance 18m×18m Strong anti-overturning ability, the pad requirements is 175kPa

Transition Efficiency

3.1. Double TC Base Frame
3.2. Around 36 hours transition between the Crane Pad
3.3. Modular design, convenient disassembly and assembly

Applications

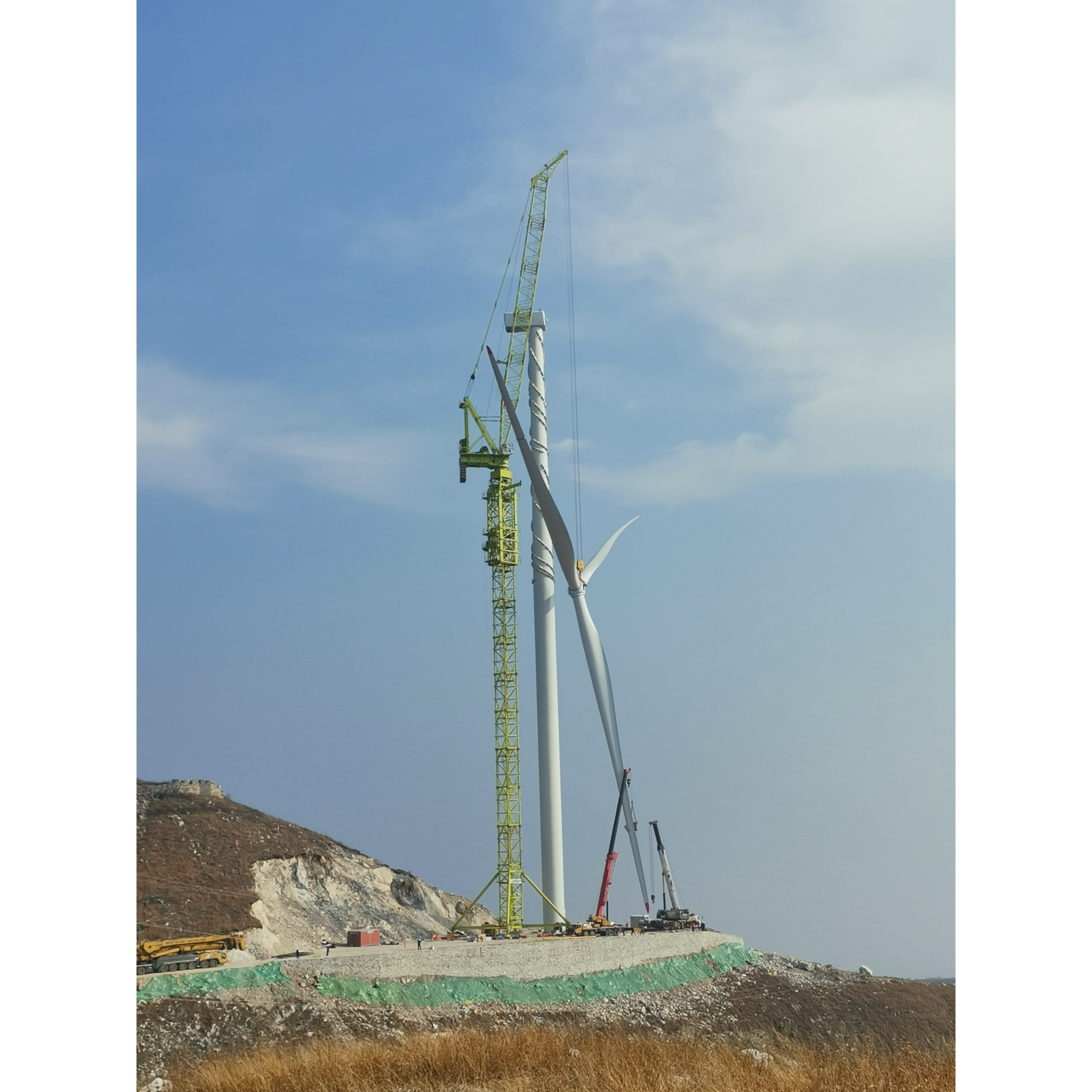

It's economy and safety are especially obvious in the lifting of turbine turbine units above 140m
