“Loong swim in the river” to celebrate the Dragon Boat Festival win speedy success|Jinli Cranes help Thermal Power project of Guangdong Yudean Dapu Power Plant

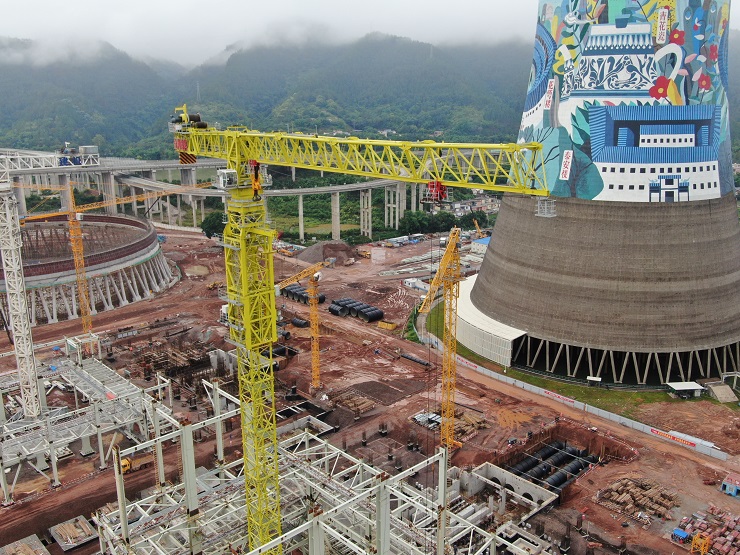

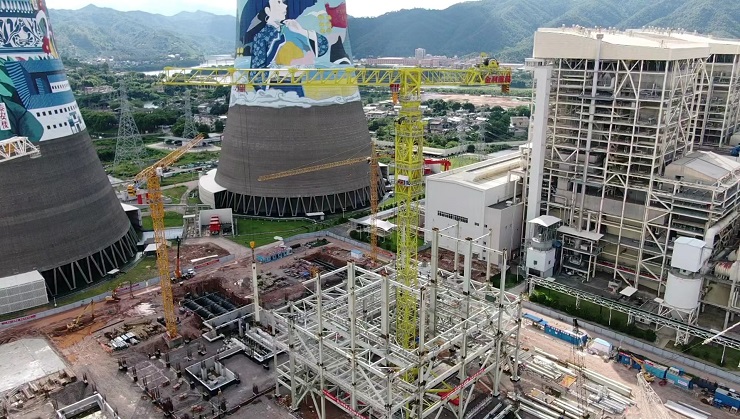

The 22nd of June is the Dragon Boat Festival, a traditional festival in China. The construction of Guangdong Tai Po Guangdong Power Plant, JLP3600-200t flat-top tower crane the main crane for the 3# unit of the project, has been doing its best to ensure progress, and has been truly customer-centred, so as to put the customers and the constructor at ease.

JLP3600 adopts brace base frame type foundation, no need for pre-buried or under pressure weight, simple foundation treatment. The maximum lifting height is 164m in two-layer attachment, which improves the construction efficiency and reduces the cost of attachment.

In thermal power project, boiler installation is the top priority. The construction site environment is complex, work area is narrow, involving more materials, machinery and equipment, which need to be transported to the installation location in order to carry out  quickly construction and operation.

With the advantages of strong lifting capacity, high working efficiency, simple foundation treatment, convenient disassembly and assembly, low transportation cost and high safety, JLP3600 tower crane helps customers to solve the above problems and ensures the smooth progress of the project, which is highly recognized by the customers.

The main structural parts are welded, which can interchange ability between different models of tower; the tower body adopts the unique technology of integral connection, which is convenient with electric special tools.

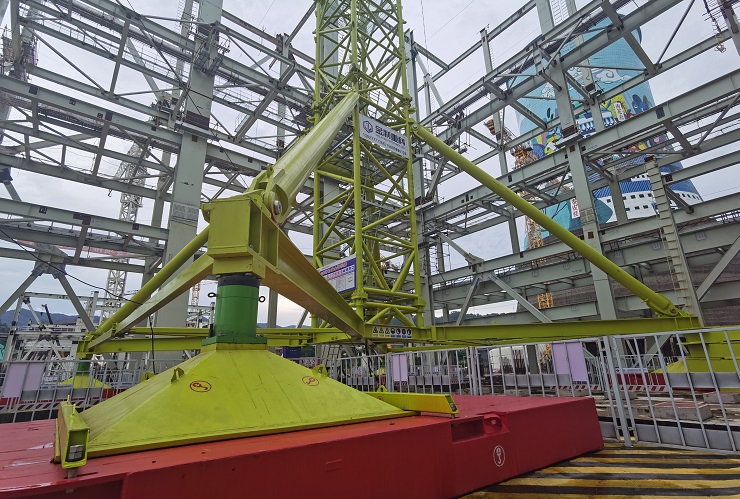

• First,JLP3600 Pipe truss structural type Chassis foundation

Advantages:

1. small floor area, 18 m X 18 m base pitch;
2. light deadweight, convenient and fast installation, combined with the 80 tons of truck crane can be installed;
3.  simple foundation treatment, foundation bearing capacity of 200 K pa can meet the requirements;
4.  The four fulcrum positions are equipped with hydraulic leveling devices, so that the levelness of the underframe can be adjusted conveniently and quickly during installation.
5. The underframe is designed without ballast, so there is no need to fabricate the lower ballast on site.

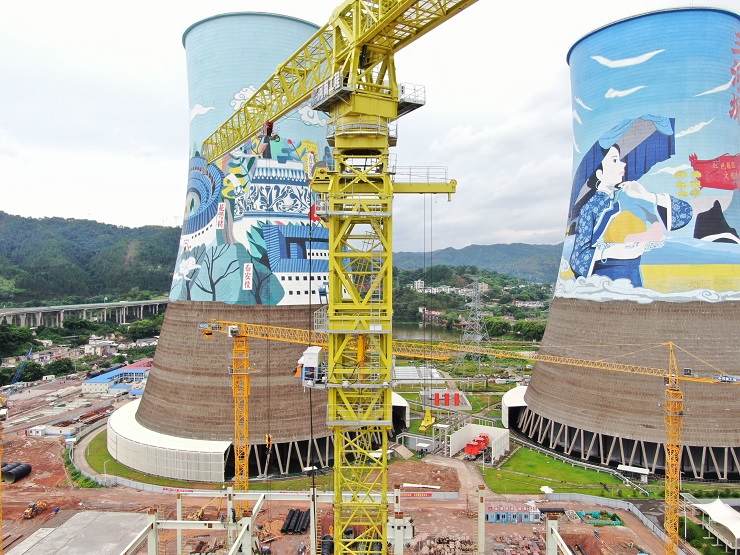

• Second,JLP3600 features small windward area and strong wind resistance

Tube truss structure is especially suitable for the coastal area, which greatly improves the safety of the project construction.

• Third,The hook height of 164m reduces the cost of one layer attachment and the construction time of one lifting attachment.

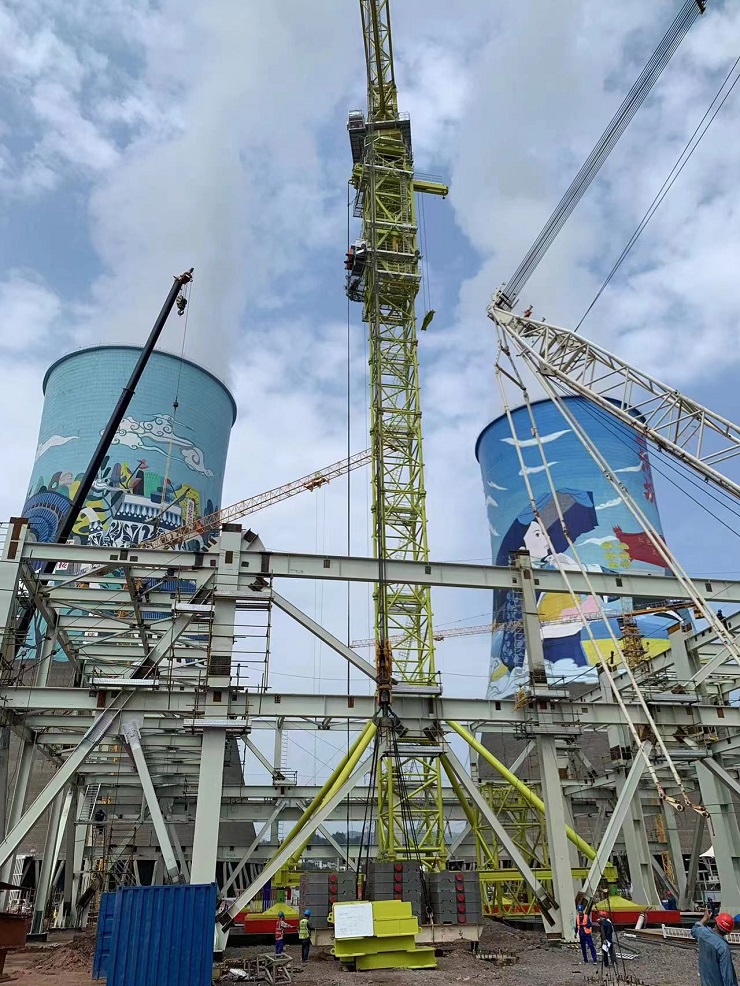

• Fourth,The hydraulic jacking sleeve adopts double-side hydraulic cylinder synchronous jacking, with the slide type sleeve, smooth and safe; the jacking process is smooth, safe and reliable, with high efficiency; the single section jacking time is 15 minutes, and it can realize adding or dropping sections 2~3 sections per hour.

• Fifth,The maximum lifting capacity of 55t in 2 times working condition fully satisfies ,more than 80% of the components lifting weight in the process of thermal power construction.nd the lifting speed is doubled compared with the working condition of 4 times working condition of the minimum hook of other tower crane of the same type, which greatly improves the working efficiency.

Jinli Cranes will continue to be anxious for customers' urgency and solve their problems.

To lead the new direction of tower crane development contribute to a high-end equipment manufacturing power.
